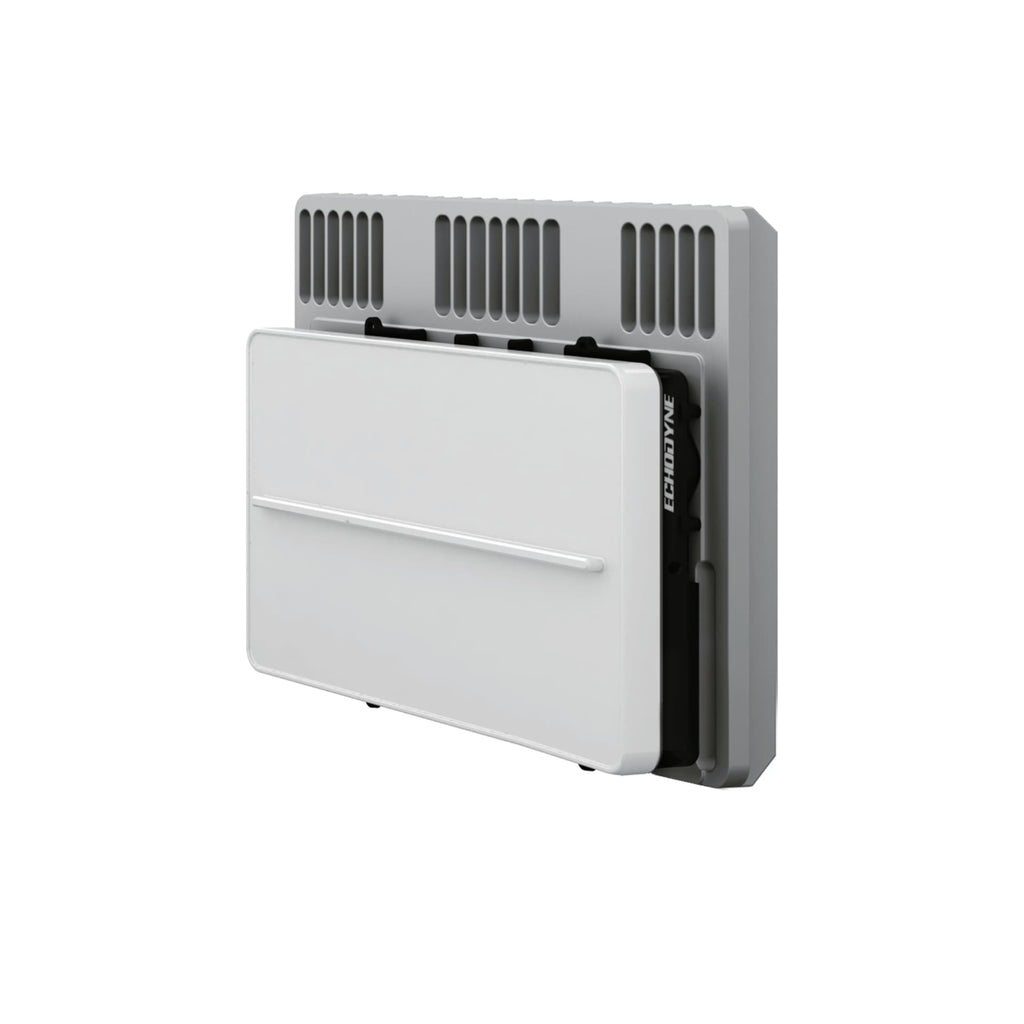

Echodyne EchoGuard is the leading 4D radar for high performance ground and air surveillance of defense, government, and critical infrastructure assets. Ultra-low size, weight, and power (SWaP) active beamsteering ESA radar at commercial prices. Ideal for fixed sites and rapidly deployed for temporary and VIP events. Easily configurable to site and mission requirements through an intuitive user interface. Generates high fidelity data that easily integrates into C2 systems. The best compact radar for mission-critical detection, tracking, classification, identification, and targeting. International version available with CE, RoHS 3 compliance.
A true breakthrough in ESA radar
Electronically scanned array (ESA) radar, the gold standard, has been cost-prohibitive and operationally restrictive for all but Defense and National Security applications. Echodyne's patented MESA® technology combines with powerful software to create ESA performance in a compact solid-state format that detects, tracks, and classifies objects of interest on the ground or in the air, regardless of weather or lighting conditions. Operating in the K-band for radiolocation and radionavigation services and with CE/RED/RoHS-3 compliance options, EchoGuard’s ultra-low SWaP, software-defined capabilities, and exemption from ITAR constraints allow for rapid response to user, site, and mission requirements anywhere in the world.
Why EchoGuard is the leader for short-range radar:
- Breakthrough Price-Performance
-
Reliable operation: 1000's operating without interruption or failure
-
120° Azimuth X 80° Elevation Field of View
-
2° Az x 6° El Angular Resolution
-
10 Hz Search While Track Rate
-
Easily Configurable to Site and Mission Requirements
-
Intuitive User Interface (UI)
-
Data-Rich C2/VMS/System Integration
-
International Version Available
EchoGUArd Details
Radar Overview
EchoGuard’s exclusive Tx/Rx cell density directs thousands of pencil-thin beams across the 120° azimuth x 80° elevation field of view (FoV) in milliseconds. EchoGuard rapidly detects and precisely tracks up to 20 objects of interest, delivering high-fidelity data in a proprietary format over a standard TCP/IP Gigabit Ethernet connection. With multiple data-rich output options available by API, including raw data, EchoGuard’s superior spatial accuracy creates a robust data foundation for counter-uncrewed aircraft systems (C-UAS) and platforms, border and port surveillance, sensitive asset and VIP event security, and dozens of other applications.
Radar Tracking Ranges (not maximum)
Radar Dimensions
Key Applications for EchoGuard
3D Security
Border Security
Base Security
Asset Security
Drone Security
Counter-UAS
Public Safety
UAS Ground
Portable ISR
Counter Drone
EchoGuard Radar Kits
Quick Start Kit
The Quick Start Kit is a protective case containing all cables, foam for desktop work, quick release handle, and additional accessories for typical integration and testing activities.
Lightweight Deployment Kit
The Lightweight Deployment Kit is designed to carry all gear (radar, computer, tripod, batteries) in a backpack weighing less than 20 lbs (9 kg), all of which is packed in a carry-on-size hard case for teams on the go.
RadarHub
Pre-engineered C2 solution for deployment, networking, and operations of multi-radar installations. Standardize every install and simplify support and maintenance.
Tower Mounting Kit
The Tower Mounting Kit comes in three sizes to configure and operate 2 km hemispherical ground and/or airspace surveillance.
