The FLIR E52 is your entry into the Exx-Series, offering the resolution and sensitivity you need for basic condition monitoring and electrical/mechanical inspection. The 240 × 180 pixel thermal detector accurately measures temperatures up to 550°C (1022°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E52 images directly from the camera to the cloud for easy, secure storage and sharing.

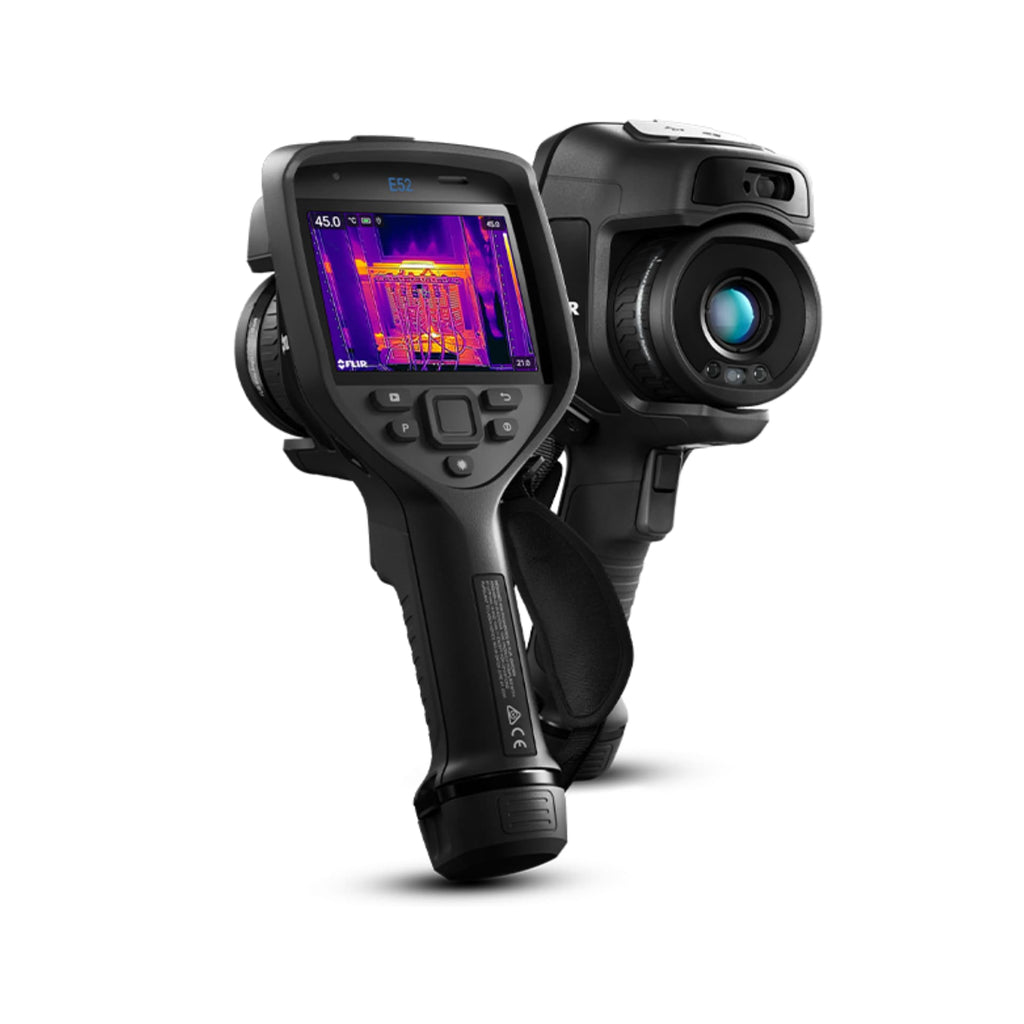

FLIR E52 24° Thermal Imaging Camera
Advanced Thermal Imaging camera
Improved Contrast for Faster Troubleshooting
Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues.
Features to Help with Diagnosis
The E52 measures up to 550°C (1022°F), offers 3 spotmeters, and displays the max/min temperature within an area live, on-screen.
Streamlined Reporting
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E52 streamline your workday. (*Optional accessory software)
Specifications
| OVERVIEW | |
| IR Resolution | 240 × 180 pixels |
| Thermal Sensitivity/NETD | <50 mK @ 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Storage Medial | Removable SD card |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Measurement Presets | No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 550°C (32°F to 1022°F) |
| Spot Meter | 3 ea. in live mode |
| ENVIRONMENTAL | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| POWER | |
| Battery operating time | > 2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| USER INTERFACE | |
| Display | 4", 640 × 480 pixel touchscreen LCD with auto-rotation |
| Text | Predefined list or touchscreen keyboard |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| IMAGING & OPTICAL | |
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1-4× continuous |
| f-number | 1.3 |
| Focus | Manual |
| Image Frequency | 30 Hz |
| IR Resolution | 240 × 180 pixels |
| Lens Identification | N/A |
| Minimum Focus Distance | 0.15 m |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Centered infrared area on the visual image |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVCm |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity/NETD | <50 mK @ 30°C (86°F) |
| Viewfinder | No |
| UltraMax | No |
| GENERAL | |
| Laser Pointer | Yes |
| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
