This product has now been discontinued, please see the alternative product:

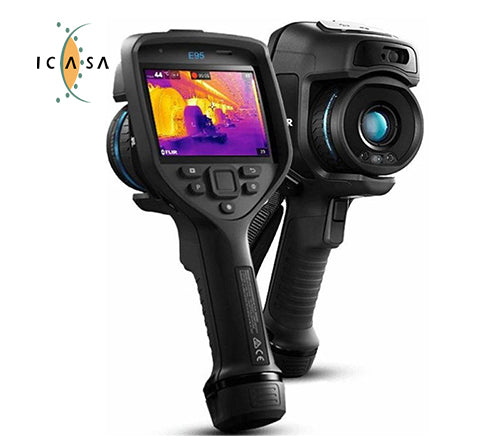

FLIR E95 Advanced Thermal Imaging Camera
Advanced Thermal Imaging
The FLIR E95 has the sensitivity and resolution you need to diagnose electrical faults, find hidden deficiencies, and keep your workplace running smoothly. This thermal imaging camera offers high-performance features, such as laser-assisted autofocus and on-screen area measurement, plus 161,472 (464 x 348) points of temperature measurement and wide temperature ranges, up to 1500°C. The E95 has a superior spot-size ratio and is sensitive enough to detect minute temperature differences.
Hard-working Design For Hard-working Pros
WIDE TEMPERATURE RANGES
E95 offers temperature ranges up to 1500°C (2732°F), for steel mills and other applications that require accurate high temperature measurement.
INTELLIGENT AUTOCAL™ OPTICS
FLIR engineered all new lenses for the E95 that you can auto-calibrate to your camera and share between cameras.
STREAMLINED REPORTING
Customizable work folders, a built-in mic for voice annotation, and report generation features all help the E95 streamline your workday.
A Clear View, From Any Angle
The E95 features a big, brilliant new touchscreen with a 160° viewing angle, to help you keep an eye on the thermal image as you work. Plus,with image enhancement options such as MSX® and UltraMax®, you'll get the best image clarity every time.
FLIR Exx-Series Specifications
| OVERVIEW | |||
|
IR Resolution |
320 x 240 (76,800 pixels) |
384 x 288 (110,592 pixels) |
464 x 348 (161,472 pixels) |
|
Object Temperature Range |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1000°C (572°F to 1830°F) Optional calibration: 300°C to 1000°C (572°F to 1830°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1200°C (572°F to 2192°F) |
-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F) 300°C to 1500°C (572°F to 2732°F) |
|
Time-lapse (Infrared) |
No |
No |
10 sec to 24 hours |
|
Spotmeter |
1 in live mode |
3 in live mode |
3 in live mode |
|
Detector Type and Pitch |
Uncooled microbolometer, 17 µm |
||
|
Thermal Sensitivity/NETD |
< 0.03°C @ 30°C (86°F) |
||
|
Spectral Range |
7.5 - 14.0 µm |
||
|
Image Frequency |
30 Hz |
||
|
Field of View (FOV) |
42° x 32° (10 mm lens), 24° x 18° (18 mm lens), 14° x 10° (29 mm lens) |
||
|
Minimum Focus Distance |
0.5 m (18 mm lens) |
||
|
F-Number |
f/1.3 |
||
|
Lens Identification |
Automatic |
||
|
Focus |
Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual |
||
|
Digital Zoom |
1-4x continuous |
||
|
Display |
4", 640 x 480 pixel touch screen LCD with auto-rotation |
||
|
Digital Camera |
5 MP, 53° x 41° FOV |
||
|
Color Palettes |
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
||
|
Image Modes |
Infrared, visual, MSX, Picture-in-Picture |
||
|
Picture-in-Picture |
Resizable and movable |
||
|
MSX |
Embosses visual details on full resolution thermal image |
||
|
UltraMax |
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
||
|
Accuracy |
±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
||
|
Alarms |
Moisture alarm, insulation alarm, measurement alarms |
||
|
Color Alarm (Isotherm) |
Above/below/interval/condensation/insulation |
||
|
Laser Distance Measurement |
Yes, on-screen |
||
|
Measurement Presets |
No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
||
|
Compass, GPS |
Yes; automatic GPS image tagging |
||
|
Storage Media |
Removable SD card (8 GB) |
||
|
Image File Format |
Standard JPEG with measurement data included |
||
|
Radiometric IR Video Recording |
Real-time radiometric recording (.csq) |
||
|
Non-Radiometric IR Video Recording / Visual Video Recording |
H.264 to memory card |
||
|
Radiometric IR Video Streaming |
Yes, over UVC or WiFi |
||
|
Non-Radiometric IR Video Streaming |
H.264 or MPEG-4 over WiFi MJPEG over UVC or WiFi |
||
|
Interfaces |
USB 2.0, Bluetooth, WiFi |
||
|
Video Out |
DisplayPort over USB Type-C |
||
|
Battery Type |
Li ion battery, charged in camera or on separate charger |
||
|
Battery Operating Time |
Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use |
||
|
Operating Temperature Range |
–15°C to 50°C (5°F to 122°F) |
||
|
Storage Temperature Range |
–40°C to 70°C (-40°F to 158°F) |
||
|
Shock/Vibration/Encapsulation; Safety |
25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 |
||
|
Weight/Dimensions w/o Lens |
1 kg (2.2 lbs), 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in) |
