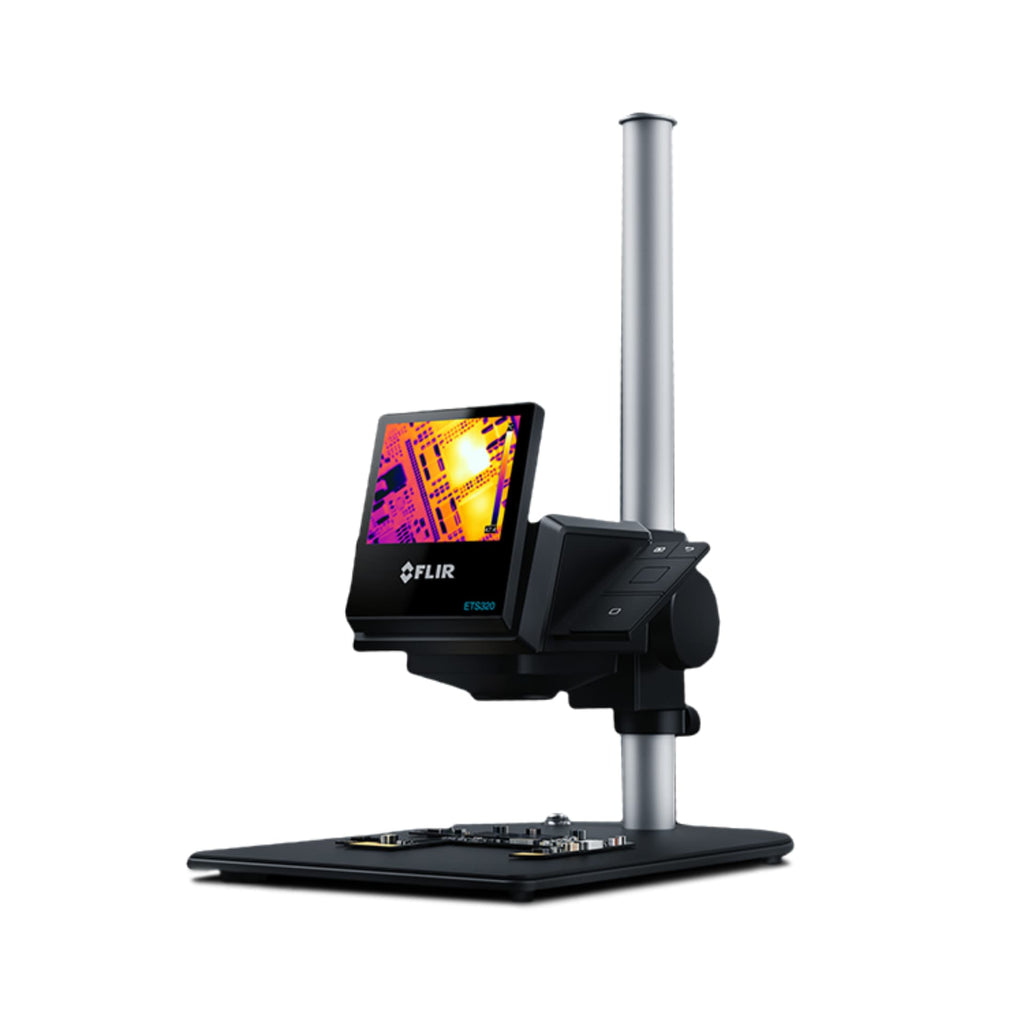

Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics.
FLIR ETS320
Thermal Imaging System for Electronics Testing
REDUCE TEST TIMES
This sensitive camera detects minute temperature shifts (< 0.06°C) and quantifies heat generation up to 250°C.
IMPROVE PRODUCT DESIGN
Offers 76,800 points of non-contact measurement and accuracy of ±3°C, so researchers can locate hot spots without concerns about heat sinks.
DESIGNED FOR BENCHTOP WORK
With a microscope-style stand that's quick to set up and simplified features, ETS320 allow researchers to focus on their work.
One Step To Finding Hot Spots
See the Heat Instantly
The ETS320 displays its crisp thermal imagery on a bright LCD display, to provide immediate thermal feedback and instantly guide you to the source of PCB failures.
SPECIFICATIONS
| OVERVIEW | |
| Accuracy | ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Detector Type | Uncooled microbolometer |
| Directives and Regulations | Battery Directive 2006/66/EC, EMI/EMC Directive 2014/30/EU, WEEE Directive 2012/19/EC, RoHS2 Directive 2011/65/EC, FCC 47 CFR Part 15 Class B, REACH Regulation EC 1907/2006 |
| Field of view (FOV) | 45° x 34° |
| IR Resolution | 320 x 240 (76,800 pixels) |
| List of Contents | Camera, mount, stand, power supply, USB cable, FLIR Tools+ software |
| NETD | <60 mK |
| Packaging Size | 2.9 kg (6.4 lb.) |
| Spot Size Min. Focus | 170 µm |
