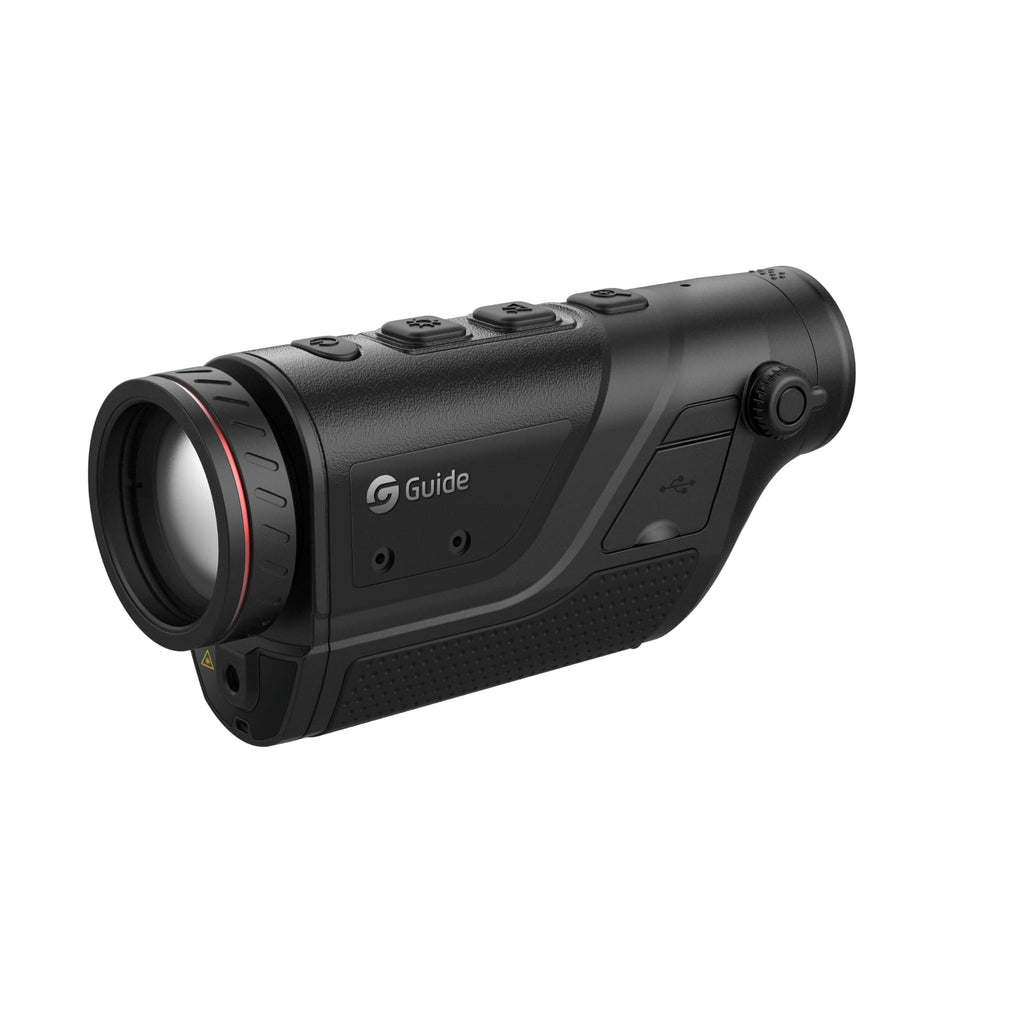

Guide TD431

Handheld Thermal Imaging Monocular

Welcome to the world of advanced night vision technology with the Guide TD431, a remarkable addition to the TD Gen2 Series. Embodying the design principles of traditional optical equipment, this handheld thermal imaging monocular offers a lightweight and portable build, ensuring effortless operation across a wide range of application scenarios. Equipped with a high-brightness OLED display, the TD431 delivers crystal-clear imaging and a comfortable viewing experience, revealing the hidden wonders of the night with exceptional precision. With a battery life of up to 10 hours, the TD431 stands as the ideal equipment for outdoor night vision, empowering you to explore the darkness with unwavering confidence.

Features:

384x288 IR resolution
35mm/F1.0 Focal Length
1400m Human Detection Range
Manual Focusing
10 Hours Battery Life

Get in Touch

Compact and Powerful

The TD431's lightweight design, allows for single-handed operantion - comfortable to hold and carry during operations.

New User Interface design

Enjoy a simplified operation with the new user interface design, featuring iconized controls that transcend language barriers for effortless usability.

Real-time Sharing by WIFI

Easily connect to the app on your phone via WiFi and instantly share wonderful moments in real-time. i

OTA Upgrade

Achieve high efficiency by connecting to the TargetIR APP for seamless device firmware updates support.

10 Hours，Extended Operation Time

Experience more than 10 hours of active usage, a remarkable 3-hour improvement over the previous generation, powered by a standard 18650 battery that is easily accessible for purchase.

Applications

Law Enforcement

Outdoor

Low Light Observation

Media Gallery

Specifications
Infrared detector
Detector resolution and pitch	384 × 288, 12 μm
Spectral range	8～14μm
NETD	≤40mk
Lens
Focal length	35 mm; F1.0
Focusing mode	Manual
Field of view	7.5° × 5.6°
Frame Rate
Output frame frequency	50Hz
Zoom
Optical zoom	2.6x
Digital zoom	1x, 2x and 4x
Visual effect	It's like viewing at a 22’‘ screen at a 1 meter
Display
Display type	0.23'' OLED
Resolution	640 × 400
Eyepiece	Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to＋2
Eyepiece zoom	18x
Video output	Analog Video
Button
Button Function	Power / Brightness / Zoom / Color palette
System
PIP	Upper left, Upper middle, Upper right, Closed
Hot spot tracking	Available
Environmental
Operating temperature range	-10 ℃ to 50 ℃
Storage temperature range	-30 ℃ to 60 ℃
Humidity	10 % to 95 % non-condensing
Shock	30 G at 11 ms half sine pulse (as per IEC60068-2-27)
Vibration	10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)
Drop	1 m
Encapsulation	IP66
Certification	IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
Physical
Weight	≤385 g
Size (L × W × H)	140 × 45 × 74 mm
Standard	A device, lens cover and lanyard, Battery charger, single 18650 battery, USB Type-C cable, Wrist strap, Carry bag, Eye mask, Quick use guide, Warranty card
