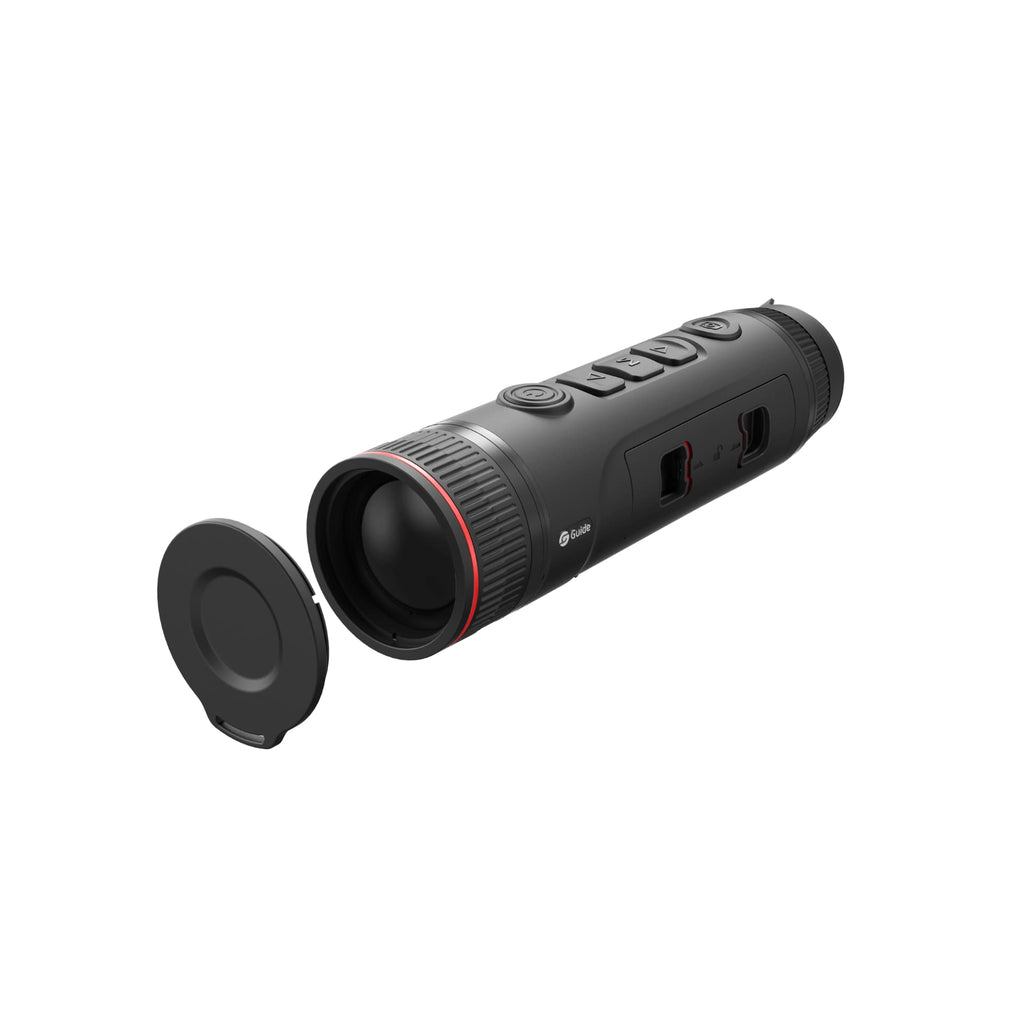

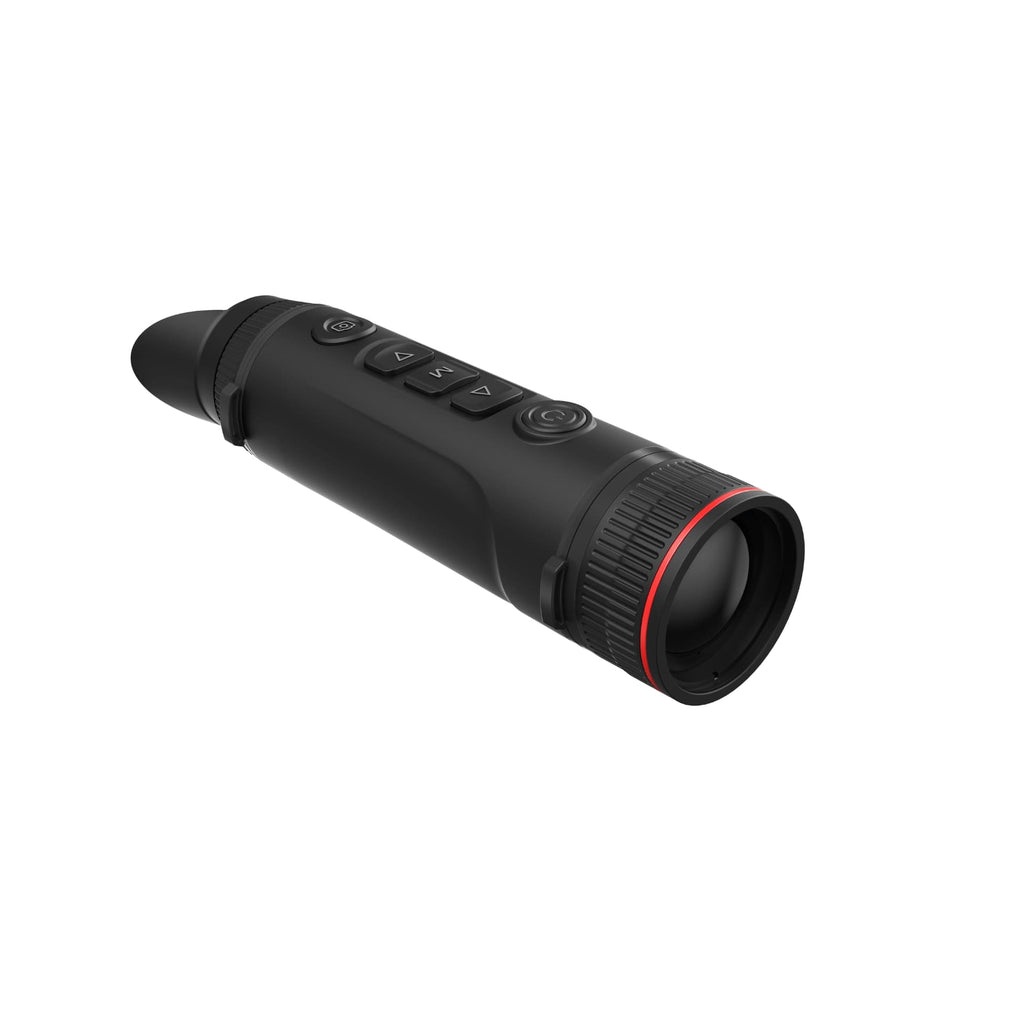

Guide TJ650 Thermal Imaging Night Vision Monocular

  • Sale
  • Regular price R 32,999.00
Tax included. Shipping calculated at checkout.




Guide TJ650

Thermal Imaging Night Vision Monocular

The Guide TJ650 is the ultimate tool for hunters, offering advanced thermal imaging technology and a high-sensitivity infrared detector for unmatched night vision clarity. Its Full-HD display ensures crisp visuals, while the ergonomic two-hand operation, video recording capability, and 12-hour battery life make it a reliable companion for nighttime pursuits.

Features:

  • 640×512@12μm resolution
  • FOV 8.8°×7.0°
  • 2600m Human Detection Range
  • 12 hrs Battery Life
  • IP67 Encapsulation



Advanced 12μm High-Sensitivity Infrared Detector

The Guide TJ650 features a state-of-the-art 12μm infrared detector with a NETD as low as 20mK. This exceptional sensitivity allows it to detect even the smallest temperature differences, delivering sharper, clearer thermal imaging for superior performance in the field.

12-Hour Operating Time

The Guide TJ650 is designed for uninterrupted outdoor observation and hunting, offering an impressive 12-hour battery life even in extreme temperatures ranging from -20°C to 50°C (-4°F to 122°F). Equipped with standard 18650 batteries that can be easily replaced in low-light conditions, this device ensures reliable operation without the worry of running out of power.

Compact and Lightweight

Weighing just around 500g, the Guide TJ650 is designed to minimize the burden of equipment, making it easy to carry and handle during outdoor use. Its compact and portable design ensures convenience for nighttime activities, providing hassle-free mobility and usability.



Full-HD 1920x1080 AMOLED Display

The Guide TJ650 features a high-definition 1920x1080 AMOLED display in the eyepiece, delivering vibrant colors and exceptional image clarity. This enhances comfort during extended observation, ensuring sharp and detailed visuals for improved nighttime experience.

IP67 Waterproof Rating

The Guide TJ650 comes with an IP67 waterproof rating, ensuring reliable performance even in the harshest weather conditions. This durable design provides the confidence to take your thermal imaging monocular on any outdoor adventure, regardless of the environment.


Applications

Law Enforcement

Outdoor

Low Light Observation


Specifications

Sensor

Type

Uncooled VOx Infrared Detector, 8 to 14μm

Resolution

640×512@12μm

NETD

20mK

Frame rate

50Hz

Lens

Objective lens

50mm, F1.0

Field of view

8.8°×7.0°

FOV m@100m

15×12

Magnification

3.79x~30.32x

Detection range

2600m/2800yd

Display

Display type

0.39'' AMOLED 1920×1080

Color palettes

White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Color palettes

Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware

WIFI

2.4G, 5G

Interface

USB Type-C (Power supply/USB2.0)

Others

Microphone, Compass, Gyroscope, Bluetooth

System

Recording function

Photo/Video (Audio recording included)

Memory capacity

64GB

Power

Battery type

2 replaceable 18650 batteries

Operating time

10 hours

Environmental

Operating temp.

-20°C to 50°C / -4°F to +122°F

Encapsulation

IP67

Physical

Weight (g/oz)

546/19.26

Size (mm/in)

243×66×66/9.57×2.60×2.60

Standard

A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card

Optional

Bluetooth remote control, 18650 battery
